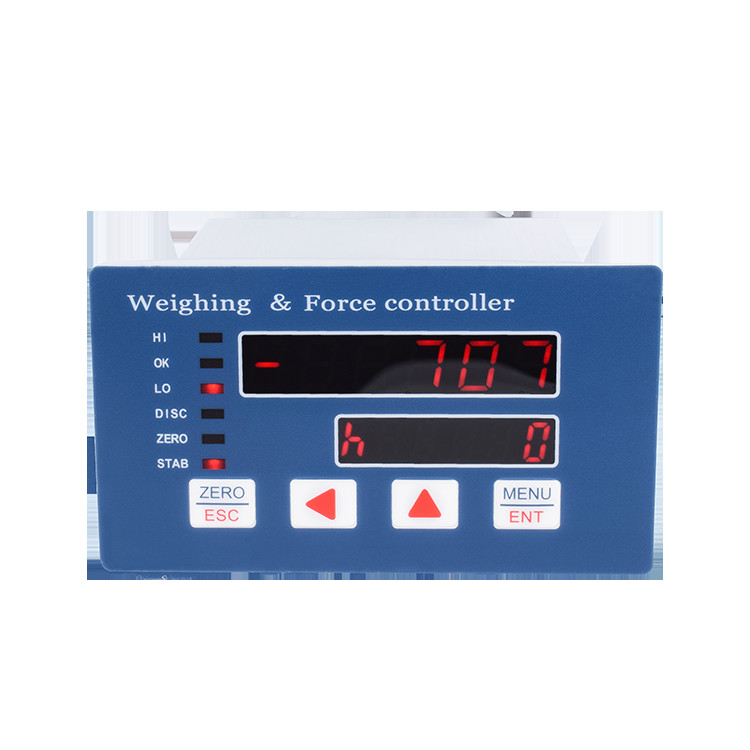

Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED

Name: Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED
Brand: FIBOS
Price: 1 USD

Quality Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED for sale

Brand Name : FIBOS

Model Number : FA05

Certification : ISO CE RoHS

Place of Origin : Jiangsu, China

MOQ : To Be Negotiated

Price : To Be Negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 Pieces per Month

Delivery Time : 1-7 work days

Packaging Details : 1.Opp bag 2.Custom box 3.According to your request

Product name : Load Cell indicator

Readability : 1/90000

Power supply : 24±5VDC

Output specs : ±10V/0~10V/4~20mA

Rated output : 0~5v,0~10v,0~±5v,0~±10v,0~20mA,0~20mA (All the above signals can be switched, no need to return to the factory)

IP Class : IP65

Excitation voltage : 5VDC

Power waste : ≤8W

Contact Now

1. Descriptions

Fibos best selling FA05 weighing force controller IP65 load cell display with LED

2. Specifications

Specification	Values
Display	Double LED
Readability	1/90000
Output linearity	＜0.002%
Comprehensive accuracy	≥0.01%
A/D conversion speed	≤1600 times/s
Accept sensor	-3.6~+3.6mV/V
Input load	1~8pcs of 350Ω sensors
Output	±10V/0~10V/4~20mA
Temp. effect on output	≤10ppm/℃
Temp. effect on zero	≤10μV/℃
Excitation voltage	5VDC
Power supply	24±5VDC
Power waste	≤8W
Operation temp. range	-20~70℃
Weight approx.	0.5kg
Material	Aluminium alloy
IP class	IP65

3. Dimension

Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED

4. Application

Features&Applications

A--Wide input range, 0.4~6mV/V can be connected to most strain-bridge sensors. B--Four independent channels, strong load capacity can be connected with 16 350Ω sensors C--Using original imported electronic components, high response frequency, good long-term stability Comprehensive accuracy of ±0.05%FS D--input power reverse connection protection and output short circuit protection E, power supply 18-30VDC (recommended 24VDC) or 15-22VAC F--suitable for pressure pulling pressure torque tension and other kinds of strain bridge sensor
